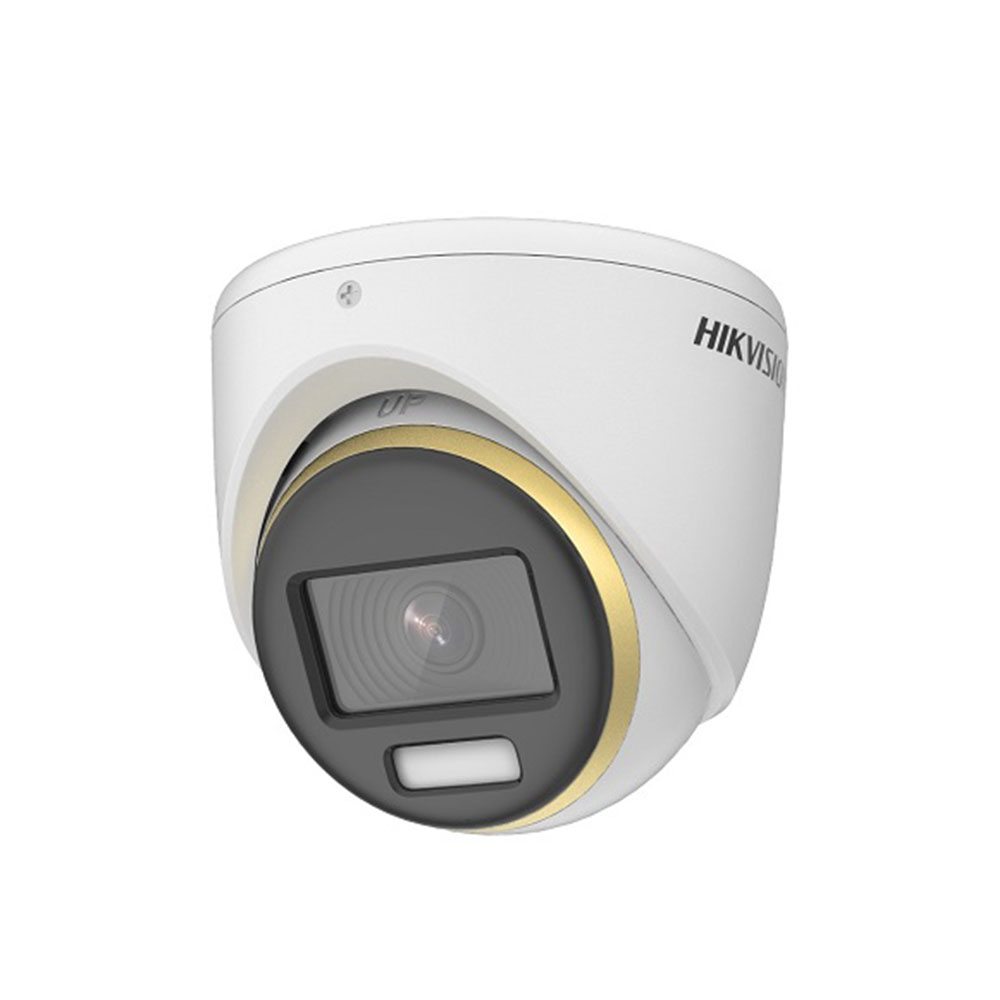

Hikvision DS-2CE70DF3T-PF

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter Time : PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night : 24/7 Color Imaging
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System : PAL/NTSC
• Slow Shutter : Max. 16 times
• Light Alarm : Solid Light Alarm (White Light)
• Lens Type : 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
• Lens Mount : M12
• Supplement Light Range : Up to 20 m
• Smart Supplement Light : Yes
• Supplement Light Type : Supplement Light Type
• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
• Frame Rate : TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVBS: PAL/NTSC
• Day/Night Mode : Color
• Wide Dynamic Range (WDR) : ?130 dB
• Image Enhancement : WDR, BLC, HLC, Global, HLS
• Privacy Mask : 4 programmable privacy masks
• Noise Reduction : 3D DNR/2D DNR
• White Balance : Auto/Manual
• Video Output : Switchable TVI/AHD/CVI/CVBS
• Motion Detection : 4 programmable motion areas
• Material : Plastic
• Dimension : ? 85.02 mm × 81.25 mm (? 3.35
• Weight : Approx. 163 g (0.36 lb.)
• Operating Condition : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Communication : HIKVISION-C
• Language : English
• Power : 12 VDC ± 25%, Max. 2.9 W
