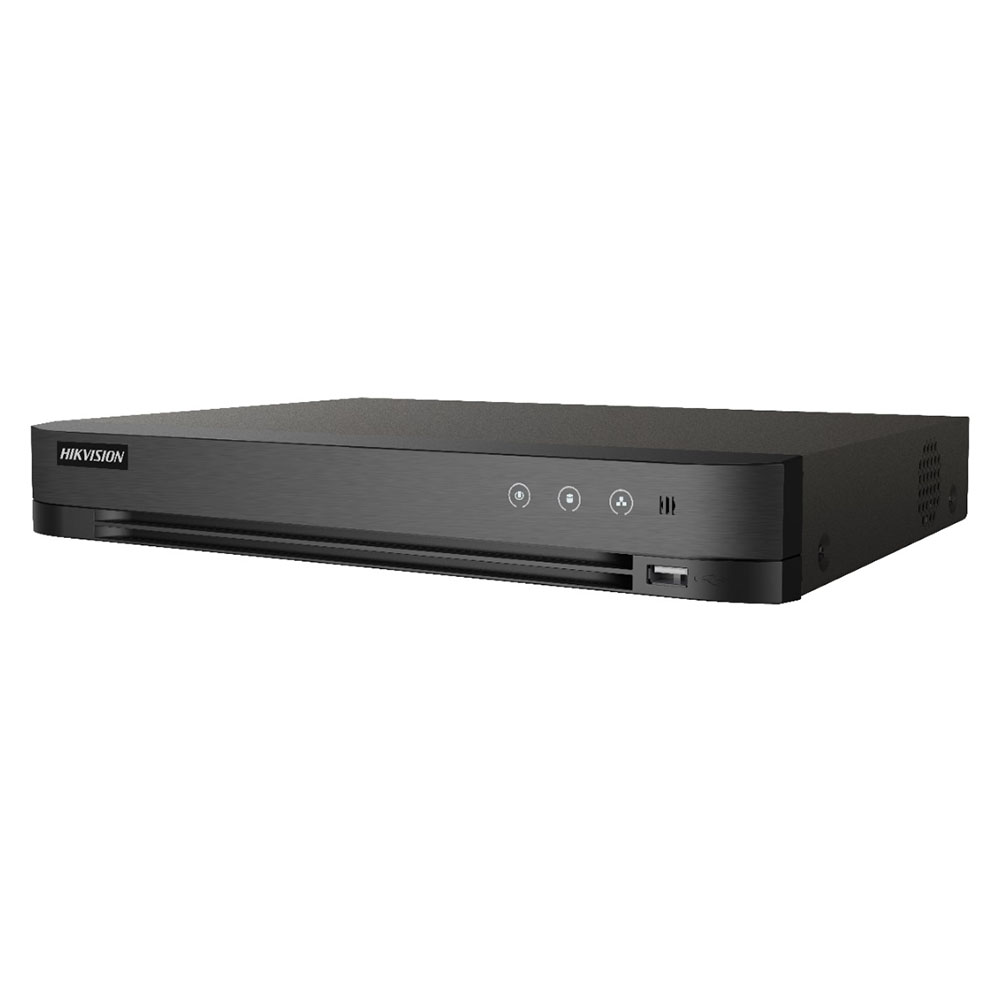

Hikvision DS-7232HQHI-K2

• Line Crossing : 2-ch
• Detection/Intrusion Detection : Enhanced VCA mode on: 4-ch
• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution : When 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate : Main stream:
When 1080p Lite mode not is enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-
• Video Bitrate : 32 Kbps to 6 Mbps
• Dual-Stream : Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps
• IP Video Input : 2-ch (up to 34-ch)
Enhanced IP mode on:
8-ch (up to 40-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input : 32-ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• Incoming Bandwidth : Enhanced IP mode on: 160 Mbps
• HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
*: The 3 MP signal input is only available for channel 1/2/3/4.
• AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : PAL/NTSC
• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output : 1-ch, RCA (Linear, 1 K?)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback : 16-ch
• Remote Connection : 128
• Total Bandwidth : 128 Mbps
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface : 1,
RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Serial Interface : RS-485 (half-duplex)
• SATA : 2 SATA interfaces
• Capacity : Up to 10 TB capacity for each disk
• Alarm In/Out : N/A
• USB Interface : Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
• Power Supply : 12 VDC, 4.5 A
• Consumption : ? 65 W (without HDD)
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight : ? 2 kg (4.4 lb)
