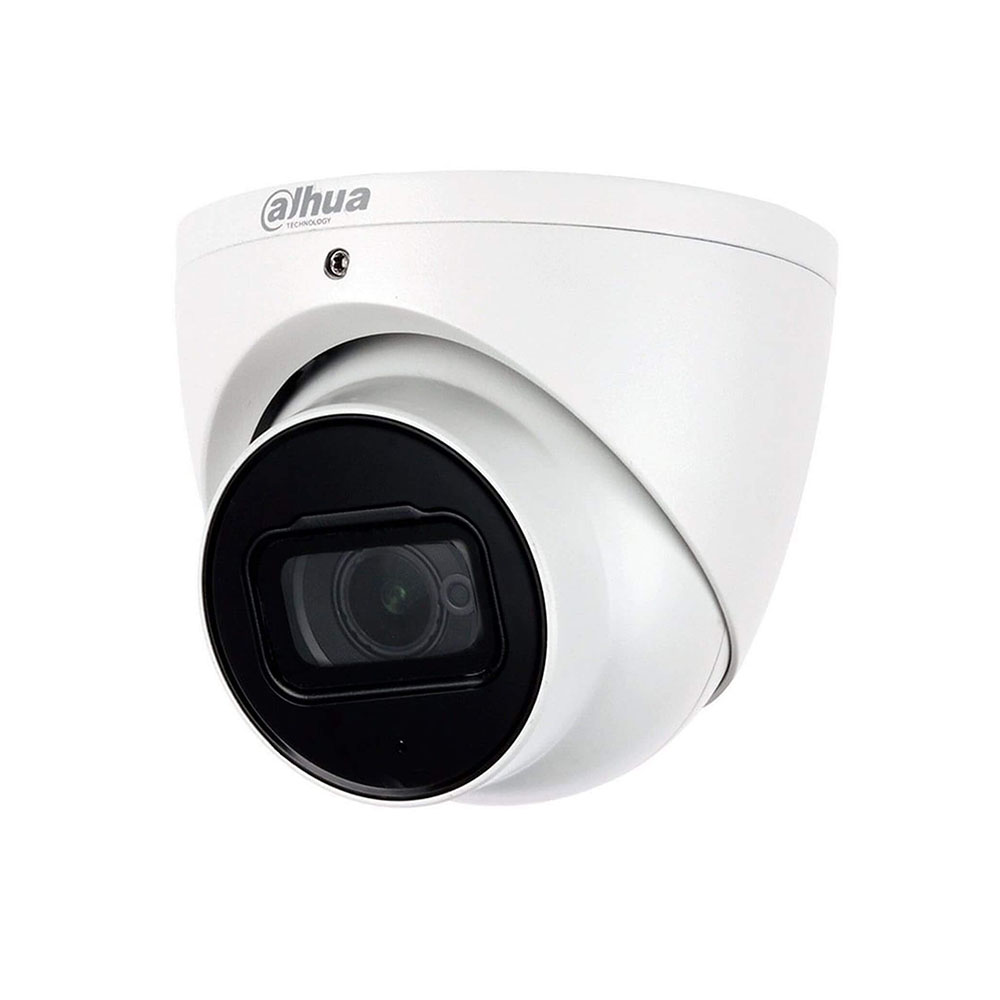

Dahua DH-HAC-HDW1200TQN-A

• Image Sensor : 2MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Pixel : 2MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
• S/N Ratio : > 65 dB
• Min. Illumination : 0.02Lux/F1.9, 30IRE, 0Lux IR on
• Illumination Distance : 40m (131.2 ft)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 1 (IR light)
• Pan/Tilt/Rotation Range : Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
• Lens Type : Fixed lens
• Mount Type : M12
• Focal Length : 2.8mm; 3.6mm; 6mm
• Max. Aperture : F1.9
• Field of View : 2.8mm:D:119°, H:101°,V:54°
3.6mm:D:100°; H:84°;V:45°
6mm:D:60°; H:56°;V:30°
• Iris Type : Fixed iris
• Close Focus Distance : 2.8mm:0.5m(1.6 ft)
3.6mm:0.8m(2.6 ft)
6mm:2m(6.6 ft)
• DORI Distance : 2.8mm: D: 38.6m(126.6 ft); O: 15.4m(50.5 ft); R: 7.7m(25.3 ft); I: 3.9m(12.8 ft)
3.6mm: D: 49.7m(163.1 ft); O: 19.9m(65.3 ft); R: 9.9m(32.5 ft); I: 5m(16.4 ft)
6mm: D: 82.8m (271.7 ft); O: 33.1m(108.6 ft); R: 16.6m (54.5 ft); I: 8.3m(27.2 ft)
• Frame Rate : CVI:
1080P@25/30fps;
720P@25/30fps;
AHD:
1080P@25/30fps;
720P@25/30fps;
TVI:
1080P@25/30fps;
720P@25/30fps;
CVBS: 960H
• Resolution : 1080P (1920×1080)
720P (1280×720)
960H (960× 576/960×480)
• Day/Night : Auto switch by ICR
• BLC : BLC/DWDR/HLC
• White Balance : Auto/Area WB
• Gain Control : Auto; manual
• Noise Reduction : 2D NR
• Smart IR : Yes
• Mirror : Off/On
• Privacy Masking : Off/On (8 area, rectangle)
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : One channel built-in mic
• Power Supply : POC (only CVI)/12V±30% DC
• Power Consumption : Max 2.9W (12V DC, IR on); POC (AF)
• Operating Temperature : –40°C to +60°C (–40°F to 140°F);? 95% (non-condensation)
• Storage Temperature : –40°C to +60°C (–40°F to 140°F);? 95% (non-condensation)
• Protection Grade : IP67
• Casing : Metal inner core+plastic cover+plastic pedestal
• Camera Dimensions : ?109.9 mm × 100.9 mm (?4.33" × 3.97")
• Net Weight : 0.34 Kg (0.7 lb)
• Gross Weight : 0.51Kg (1.1 lb)
