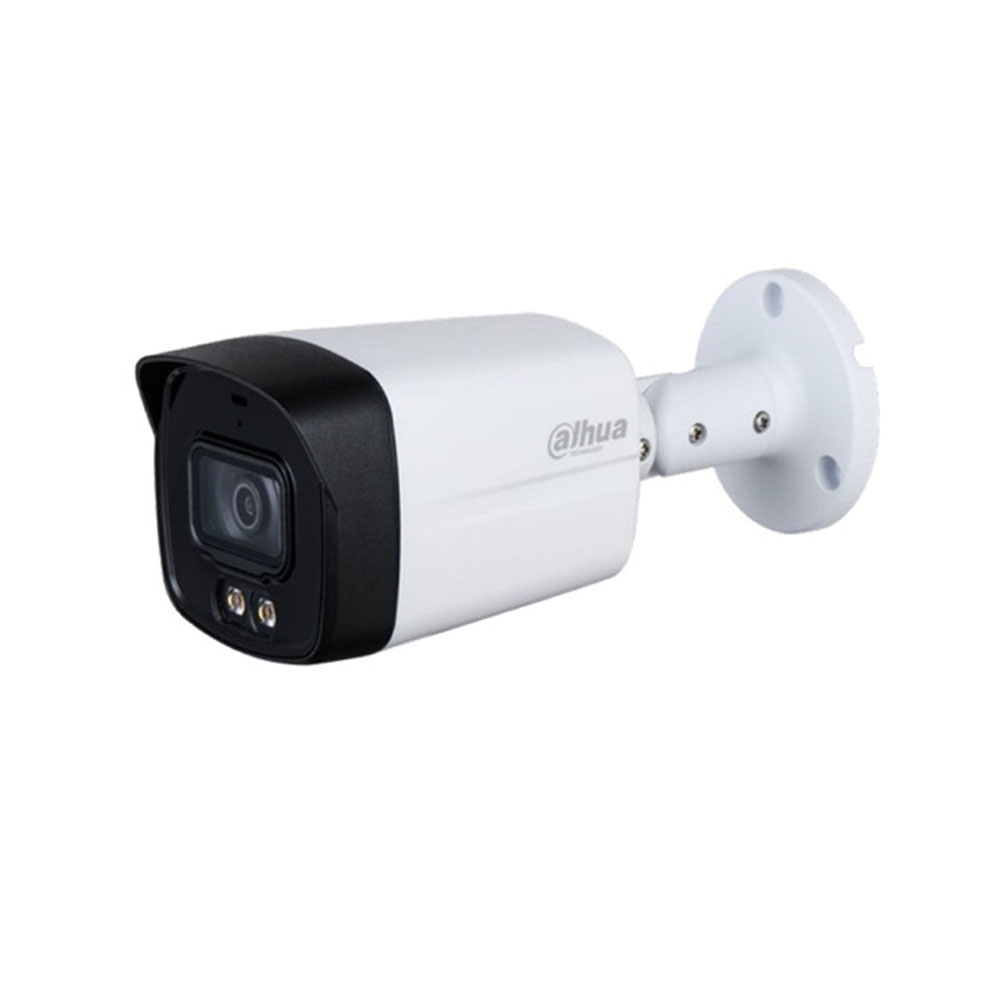

Dahua DH-HAC-HFW1239TLMN-A-LED

• Image Sensor : 1/2.8 inch 2.16 Mega Pixels CMOS
• Effective Pixels : 1920 (H)×1080 (V), 2MP
• Electronic Shutter Speed : PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
• Minimum Illumination : 0.005Lux/F1.6, 30IRE, 0Lux white Light on
• Fill Light (White Light) Distance : Distance up to 40m (131.23ft)
• Fill Light On/Off Control : Auto; Manual
• Fill Light Number : 2
• Pan/Tilt/Rotation Range : Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length : 2.8m/3.6mm
• Max. Aperture : F1.6
• Angle of View : 2.8mm
126.2°×106.0°×56.5° (diagonalxhorizontalxvertical)
3.6mm
103.6°x86.9°x46.3° (diagonalxhorizontalxvertical)
• Iris Type : Fixed iris
• Close Focus Distance : 2.8mm: 0.6m (1.97ft)
3.6mm: 1.2m (3.94ft)
• Lens : 2.8mm
3.6mm
• Detect : 38.6m (126.6ft)
55.2m (181.1ft)
• Observe : 15.4m (50.5ft)
22.1m (72.5ft)
• Recognize : 7.7m (25.3ft)
11.0m (36.0ft)
• Identify : 3.9m (12.8ft)
5.5m (18.0ft)
• Video Frame Rate : •CVI:
PAL: 1080@25fps, 720@25fps, 720@50fps
NTSC: 1080@30fps, 720@30fps, 720@60fps
•AHD:
PAL: 1080@25fps,720@25fps
NTSC: 1080@30fps,720@30fps
•TVI:
PAL: 1080@25fps,720@25fps,720@50fps
NTSC: 1080@30fps,720@30fps,720@60fps
•CVBS:
PAL: 960×576H
NTSC: 960×480H
• Resolution : 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480)
• BLC : BLC/HLC/WDR
• WDR : DWDR
• White Balance : Auto/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 2D NR
• Smart Light : Yes
• Electronic Defog : Yes
• Digital Zoom : 16X
• Mirror : Off/On
• Privacy Masking : Off/On (4 area, rectangle)
• Audio Interface : Built-in mic(-A)
• Video Port : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Power Supply : 12V ±30% DC
• Power Consumption : Max 5W (12V DC, white light on)
• Operating Temperature : -40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
• Storage Temperature : -40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
• Protection Grade : IP67
• Casing : Metal front cover+plastic main body+metal bracket
• Dimensions : 198.4mm×80.2mm×76.2mm (7.81"×3.16"×3.00")
• Net Weight : 0.3Kg(0.66lb)
• Gross Weight : 0.45Kg(0.99lb)
