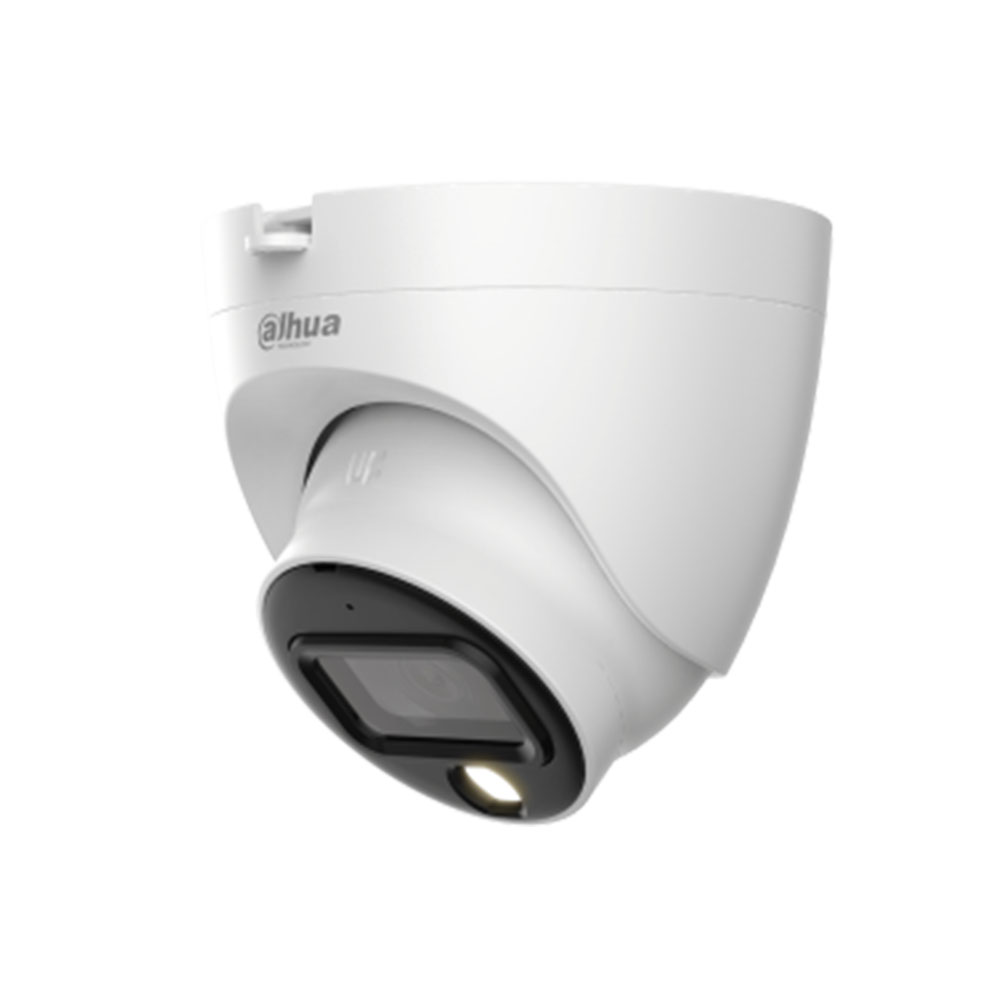

Dahua HAC-HDW1239TLQN-A-LED

• Image Sensor : 1/2.8
• Max. Resolution : 1920 (H) × 1080 (V)
• Pixel : 2MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
• S/N Ratio : > 65 dB
• Min. Illumination : 0.001 Lux/F1.6, 30IRE, 0 Lux LED on
• Illumination Distance : 20 m (65.6 ft)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 1
• Pan/Tilt/Rotation Range : Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
• Lens Type : Fixed lens
• Mount Type : M12
• Focal Length : 2.8 mm; 3.6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: H: 107°; V: 56°; D: 127°
3.6 mm: H: 86°; V: 46°; D: 101°
• Iris Type : Fixed iris
• Close Focus Distance : 2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
• Lens : 2.8 mm
3.6 mm
• Detect : 43.9 m (144 ft)
53.7 m (176.2 ft)
• Observe : 17.5 m (57.4 ft)
21.5 m (70.5 ft)
• Recognize : 8.8 m (28.9 ft)
10.7 m (35.1 ft)
• Identify : 4.4 m (14.4 ft)
5.4 m (17.7 ft)
• Frame Rate : CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H
• Resolution : 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• BLC : BLC/WDR/HLC
• WDR : 130 dB
• White Balance : Auto; Area WB
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Smart Light : Yes
• Mirror : Off/On
• Privacy Masking : Off/On (8 area, rectangle)
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : One channel built-in mic (-A)
• Power Supply : 12 V ±30% DC
• Power Consumption : Max 3.3 W (12 V DC, LED on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
• Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
• Protection Grade : IP67
• Casing : Metal inner core + plastic cover + plastic pedestal
• Camera Dimensions : ?97.1 mm × 92.9 mm (?3.82" × 3.66")
• Net Weight : 0.22 kg (0.49 lb)
• Gross Weight : 0.28 kg (0.62 lb)
